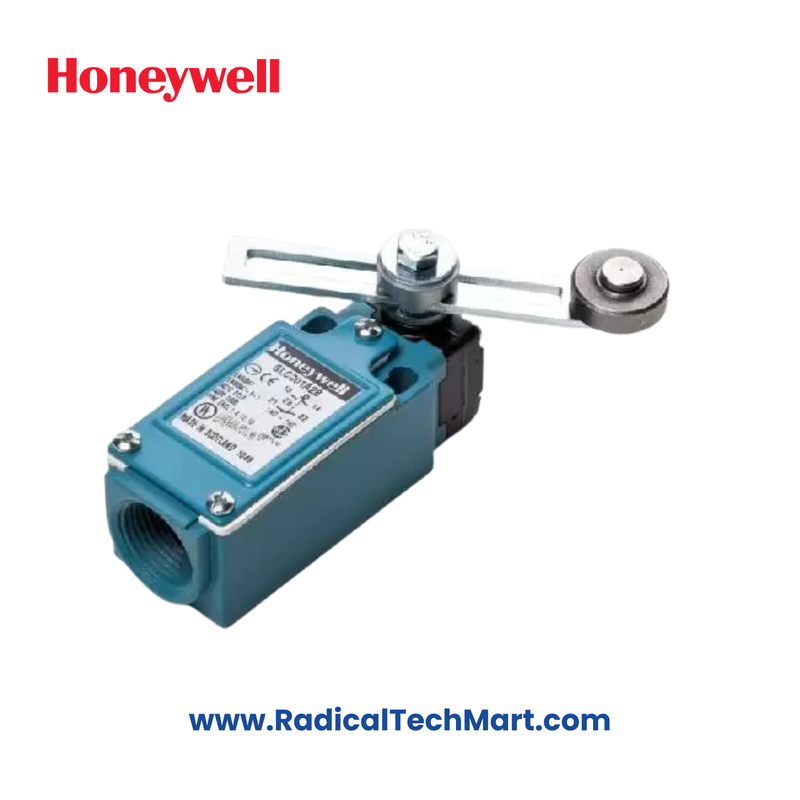

GLCC01A2B Honeywell Limit Switch

Product Description:

• Brand: Honeywell
• Model No.: GLCC01A2B
• Conformance to Standards:
  • CE
  • EN 50047
  • IEC/EN 60947-5-1
  • CSA C22.2 #14
  • UL 508
  • CCC1 GB14048.5
  • EN 45545-2 (GLC/GLE)
  • EN 61373

Housing Material:

• GLC Series and GLE Series: Electrostatic epoxy-coated zinc
• GLD Series: High-strength glass-reinforced thermoplastic

Actuators:

• Side rotary
• Top pin plunger
• Top roller plunger
• Top roller lever
• Top wobble actuator

Termination Options:

• 0.5-14 NPT
• PG 13.5
• 20 mm
• PF 1/2
• Deutsch style 4-pin connector
• Other cable/connector options available (contact Honeywell representative for more details)

Contact Options:

• GLC Metal Housing and GLD Plastic Housing:
  • 1NC/1NO (Normally Closed/Normally Open)
  • 2NC (2 Normally Closed)
  • 2NO (2 Normally Open)
• GLE Metal Housing:
  • 1NC/1NO
  • 2NC
  • 2NO
  • 2NC/2NO

Contact Type:

• Snap-action
• Slow-action break-before-make (BBM)
• Slow-action make-before-break (MBB)
• Slow action

Contact Material:

• Silver (standard)
• Gold plated (for low-energy applications)

Electrical Specifications:

• Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 300 V
• Rated Impulse Voltage: 2.5 kV
